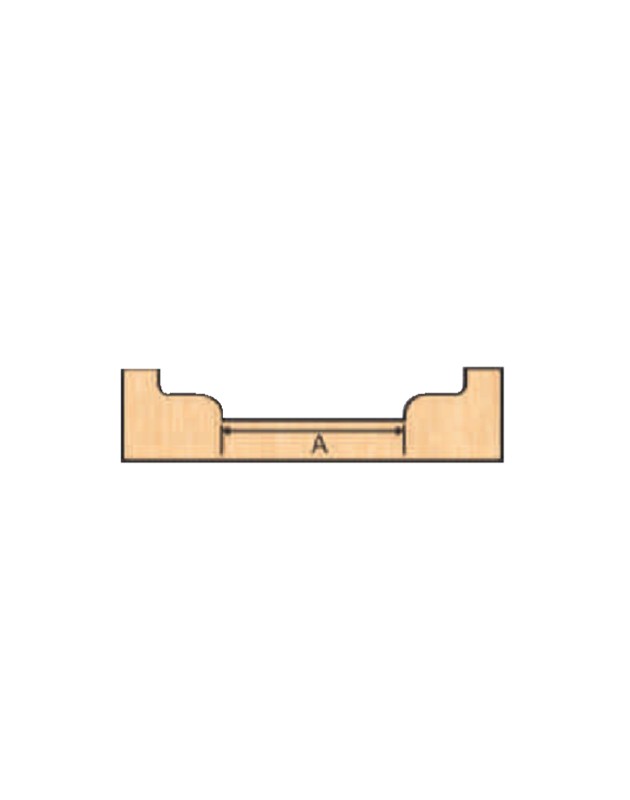

Step Ogee Tool
B = Depth
Also available in 1mm to 4mm.
| Code No. | Diameter (mm) | A (mm) | B (mm) | Shank (mm) |
|---|---|---|---|---|
| 493 | 25 | 10 | 1/1.5/2/2.5 | 12 |
| 493A | 28 | 13 | 1/1.5/2/2.5 | 12 |
| 493B | 30 | 14 | 1/1.5/2/2.5 | 12 |
| 493C | 32 | 15 | 1/1.5/2/2.5 | 12 |
| 493D | 35 | 17 | 1/1.5/2/2.5 | 12 |
| 493E | 38 | 18 | 1/1.5/2/2.5 | 12 |
| 493F | 40 | 20 | 1/1.5/2/2.5 | 12 |
